disc valve, stroke 57,0mm, conrod 110,0mm, pin 16mm, valve timing: 138°/6° post TDC
Racing crankshafts are a simple and effective tuning upgrade for every disc slide valve engine. A racing crankshaft gets higher rpm’s, your engine will be agile and have more pep. Better acceleration and higher top speeds are the result.
A racing crankshaft has noticeably longer intake timing in comparison to an original crankshaft. Your fuel charge will also be greater. The crankwebs are streamlined and polished, turbulence and flow blocks are reduced. The connecting rod is partially a polished edged connecting rod, the lower connecting rod bearing is a silver bearing. All crankshafts are delivered with upper connecting rod bearings.
High quality racing crankshafts from Italian manufacturer MAZZUCCHELLI have minimal production tolerances, lowered bearing play and a very good price/performance ratio. High speeds and absolute durability are a guarantee. We are offering a supplementary finely balanced version. In this version, the connecting rod is balanced at 12 o'clock. This shaft operates impressively quiet.
The racing crankshafts from TAMENI have very good moulding compound, resulting in stable high rpm's and highest durability guaranteed.
PINASCO racing crankshafts have streamlined polished flanges. The connecting rod is high quality polished workmanship and comes with PINASCO lettering and silver bearing. For optimal lubrication, it's equipped with additional lubrication bores/slits. In addition PINASCO also now have a new sport orientated long stroke (62mm)/racing crankshaft available. It features more extreme inlet-port timing, a gas-flowed surface profile, tungsten balancing weights and innovative PTFE inserts for a higher primary compression. This crankshaft is ideal for both touring or race orientated motor set ups!
Conclusion: This doesn't have to be combined with a tuning cylinder; you'll get a noticeable performance plus when used with your original cylinder.
Racing crankshaft / stroke 57 mm / connecting rod 105-110 mm / 25/24 mm, M12

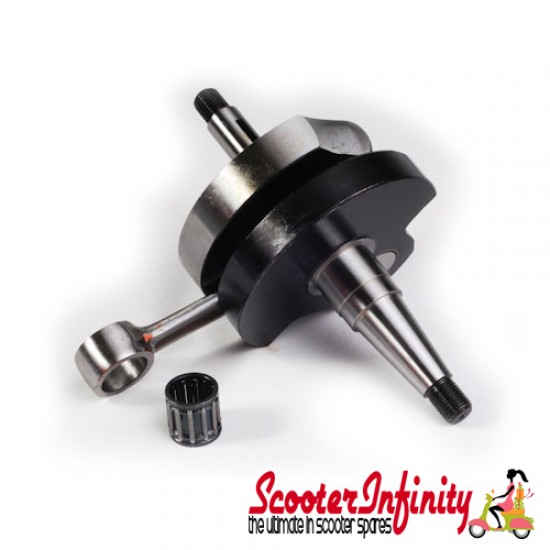

Racing crankshaft, with Ø 95 mm crankweb (flywheel side), ø 97.9 mm crankweb (disc valve side), partially balanced at 12 o'clock, lower connecting rod bearing = silver bearing, 105mm connecting rod (125/150 cc) or 110 mm connecting rod (200cc), 42mm stroke (T5) or 57mm stroke (PX), oil seal housing 24mm, bearing housing 25mm, stump cone with M12 thread, incl. connecting rod bearing
|VESPA 200 Rally||200||`72-`79||33997 ->|
|VESPA COSA 1||200||`88-`91|
|VESPA COSA 2||200||`90-`96|
|VESPA P200E / PX200 E||200||`77-`86|
|VESPA PX200 E `98 / Millenium||200||`98-|
|VESPA PX200 E Lusso/ EFL/ Arcobaleno / Elestart||200||`83-`97|
